PPV IQ Infotainment Wiring for the Chevrolet VE Caprice
- Document Contents
- Introduction
- Tools Required

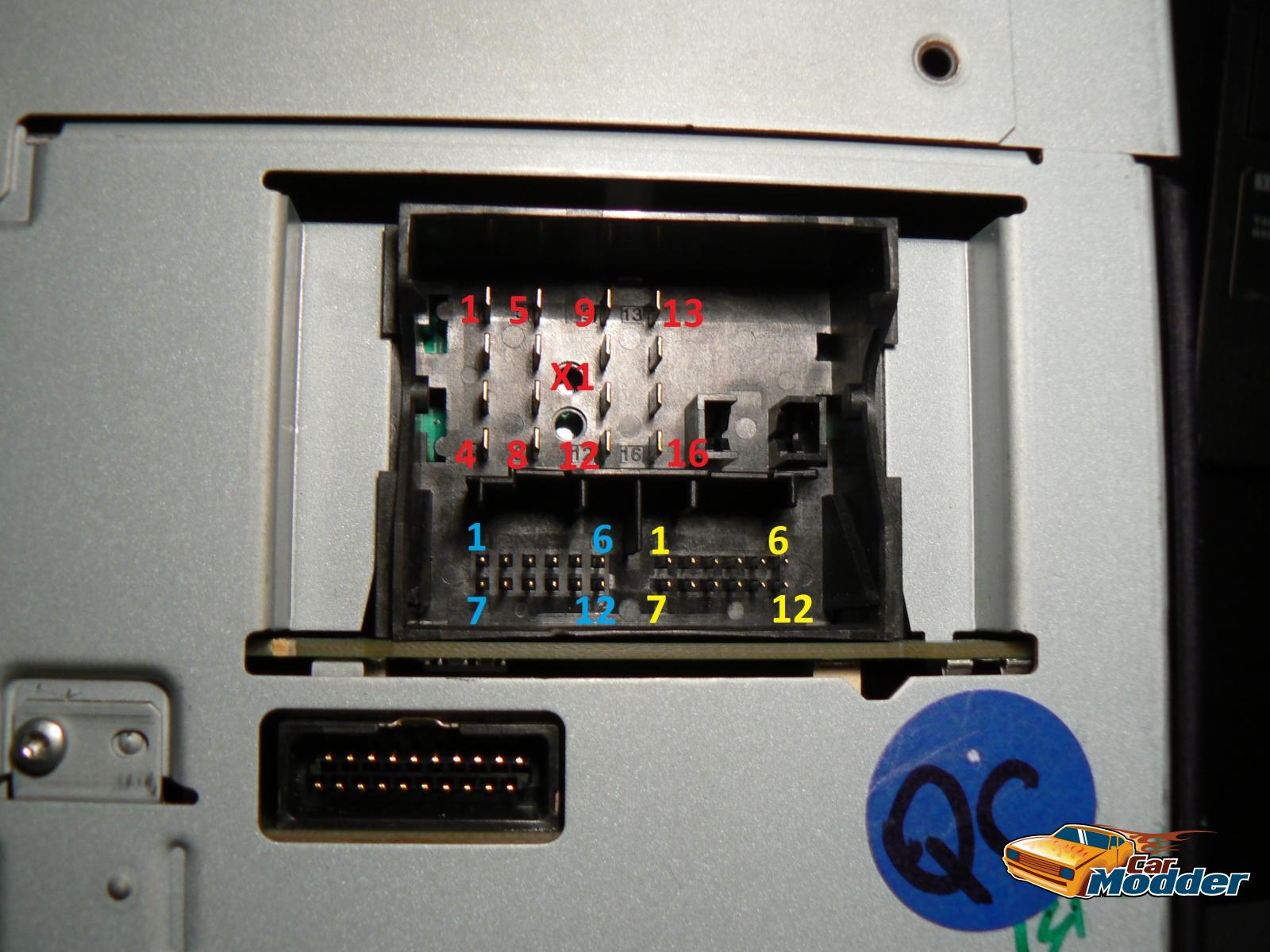

- Wiring Connector Pin Out Information
- Document Information
- Wiring information for the Police Pursuit Vehicle and Series II Caprice Infotainment and Radio
- Vehicle: Chevrolet Caprice (VE)
- Copyright Owner: Matthew Jones (Matti Jones) (ZerOne)
- Document Visits: 5094
- Created: Thu Apr 04, 2013 12:27 am
- Revised: Thu Apr 04, 2013 12:27 am (Rev 2)
-
-
The following guide outlines the connectors, wire colours, and wiring information for the factory fitted VE Series 2 Radios.
This includes Basic (Omega and PPV Models), Advanced (SV6, SS, Berlina and Calais Models), and GPS Models (SS-V, Calais V and HSV SWB Models).
-
-
To remove the factory HVAC / Radio head Unit from the vehicle, you will require the following tools.
1 x Phllips head screw driver,
1 x Small Flat Headed screw driver, for unclipping the radio antenna connector(s)
-
Connector X1
Pin Wire Colour Details 1 Dark Blue Speaker RR Door (+) 2 Light Green or
Light Green / White StripeSpeaker RF Door (+) 3 Brown or
Brown / Orange StripeSpeaker LF Door (+) 4 Brown or
Brown / White StripeSpeaker LR Door (+) 5 Light Blue or
Brown / Blue StripeSpeaker RR Door (-) 6 Dark Green or
Light GreenSpeaker RF Door (-) 7 Grey or
Dark GreenSpeaker LF Door (-) 8 Yellow / Red Stripe or
BrownSpeaker LR Door (-)
Connector X2
Pin Wire Colour Details 9 Orange Front Center Speaker Output (+) 10 Light Blue Front Center Speaker Output (-) 11 Orange / Blue Stripe Battery Positive Voltage 12 Black Ground 13 Black Ground 14 White Amplifier Enable Signal 15 Orange / Blue Stripe Battery Positive Voltage 16 Dark Green Low Speed GMLAN Serial Data
Connector X3
Pin Wire Colour Details 1 Not Used 2 Not Used 3 Pink Left Audio Signal Output DVD(+) 4 Bare Shield Common Audio Signal (-) 5 Light Green Auxillary Audio Jack Right Signal (+) 6 Dark Green / White Stripe Auxillary Audio Jack Left Signal (+) 7 Not Used 8 Not Used 9 Dark Blue Right Audio Signal Output DVD(+) 10 Not Used 11 Dark Blue Auxillary Audio Jack Ground (-) 12 Bare Shield Auxillary Audio Jack Ground (-)
Connector X4
Pin Wire Colour Details 1 Blue Microphone Audio Signal (+) 1 Bare Shield Microphone Audio Signal (-) 3 Orange / Black Stripe Telephone Audio Signal (+) 4 Light Blue Telephone Audio Signal (-) 5 Red DVD Auxiliary Audio Left Signal (+) 6 Dark Blue / White Stripe Common Auxiliary Audio Signal (-) 7 Not Used 8 Pink Auxiliary Audio Jack Detection Signal 9 White Telephone Audio Mute Signal 10 Dark Green Right Audio Signal Output DVD (+) 11 Not Used 10 Orange Amplifier Mute Control
Connector X5
Pin Wire Colour Details 1 Bare Shield DVD Input Video Ground (-) 2 Red DVD Input Video Signal (+) 3 Bare Shield Reverse Camera Video Ground (-) 4 Red Reverse Camera Video Signal (+) 5 Not Used 6 Not Used 7 Green Video Connector (RGBS) - Blue 8 Black Video Connector (RGBS) - Green 9 Yellow Video Connector (RGBS) - Low Reference 10 Red Video Connector (RGBS) - Red 11 Bare Shield Video Connector (RGBS) - Ground 12 White Video Connector (RGBS) - Syncronisation 13 Not Used
