Holden IQ Wiring Information for the Holden VE II Commodore

  • The following guide outlines the connectors, wire colours, and wiring information for the factory fitted VE Series 2 Radios.
    This includes Basic (Omega and PPV Models), Advanced (SV6, SS, Berlina and Calais Models), and GPS Models (SS-V, Calais V and HSV SWB Models).

  • To remove the factory HVAC / Radio head Unit from the vehicle, you will require the following tools.
    1 x Phllips head screw driver,
    1 x Small Flat Headed screw driver, for unclipping the radio antenna connector(s)

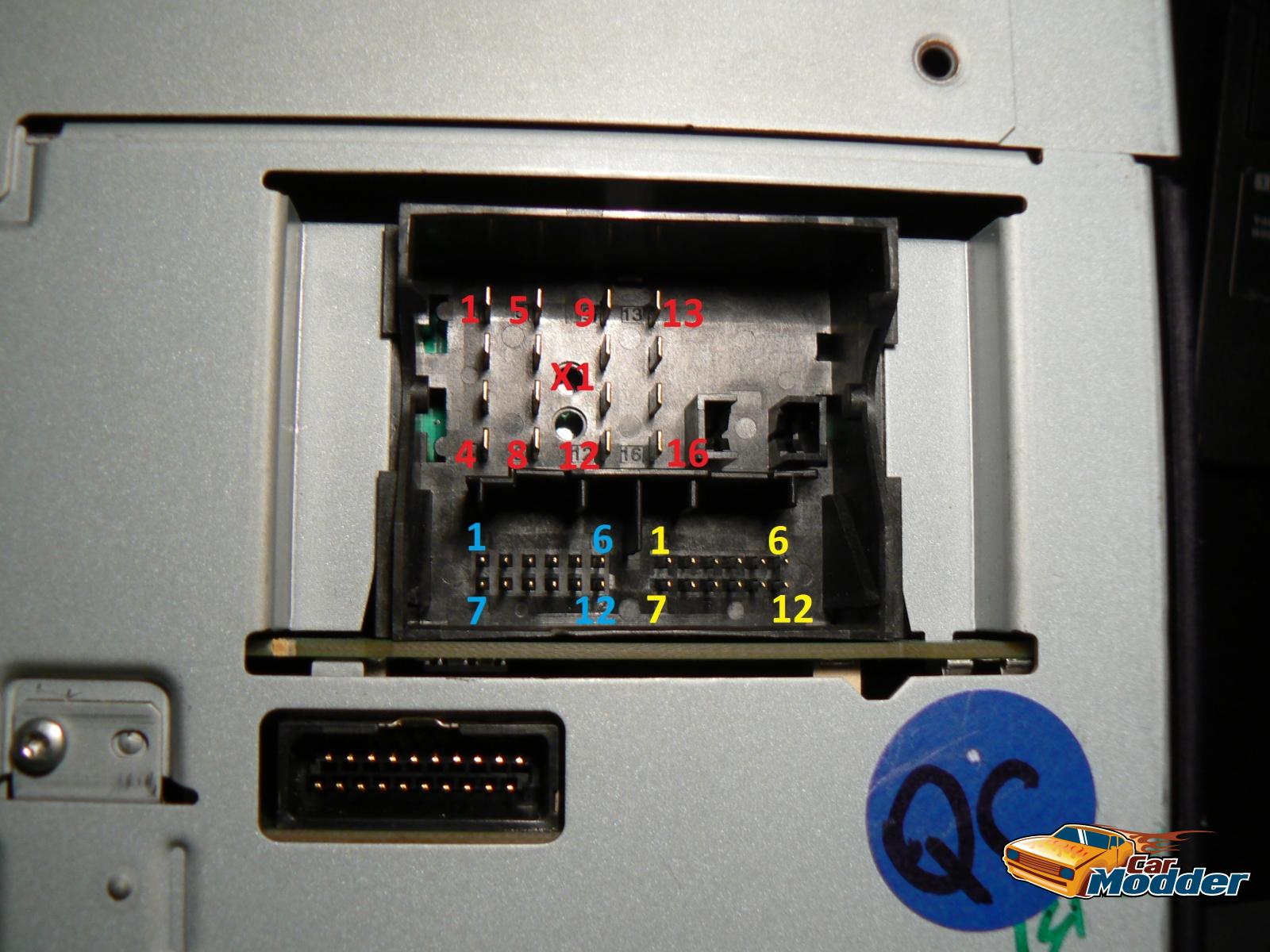

  • Connector X1
    PinWire ColourDetails
    1Dark BlueSpeaker RR Door (+)
    2Light Green or
    Light Green / White Stripe
    Speaker RF Door (+)
    3Brown or
    Brown / Orange Stripe
    Speaker LF Door (+)
    4Brown or
    Brown / White Stripe
    Speaker LR Door (+)
    5Light Blue or
    Brown / Blue Stripe
    Speaker RR Door (-)
    6Dark Green or
    Light Green
    Speaker RF Door (-)
    7Grey or
    Dark Green
    Speaker LF Door (-)
    8Yellow / Red Stripe or
    Brown
    Speaker LR Door (-)


    Connector X2
    PinWire ColourDetails
    9OrangeFront Center Speaker Output (+)
    10Light BlueFront Center Speaker Output (-)
    11Orange / Blue StripeBattery Positive Voltage
    12BlackGround
    13BlackGround
    14WhiteAmplifier Enable Signal
    15Orange / Blue StripeBattery Positive Voltage
    16Dark GreenLow Speed GMLAN Serial Data


    Connector X3
    PinWire ColourDetails
    1 Not Used
    2 Not Used
    3PinkLeft Audio Signal Output DVD(+)
    4Bare ShieldCommon Audio Signal (-)
    5Light GreenAuxillary Audio Jack Right Signal (+)
    6Dark Green / White StripeAuxillary Audio Jack Left Signal (+)
    7 Not Used
    8 Not Used
    9Dark BlueRight Audio Signal Output DVD(+)
    10 Not Used
    11Dark BlueAuxillary Audio Jack Ground (-)
    12Bare ShieldAuxillary Audio Jack Ground (-)


    Connector X4
    PinWire ColourDetails
    1BlueMicrophone Audio Signal (+)
    1Bare ShieldMicrophone Audio Signal (-)
    3Orange / Black StripeTelephone Audio Signal (+)
    4Light BlueTelephone Audio Signal (-)
    5RedDVD Auxiliary Audio Left Signal (+)
    6Dark Blue / White StripeCommon Auxiliary Audio Signal (-)
    7 Not Used
    8PinkAuxiliary Audio Jack Detection Signal
    9WhiteTelephone Audio Mute Signal
    10Dark GreenRight Audio Signal Output DVD (+)
    11 Not Used
    10OrangeAmplifier Mute Control


    Connector X5
    PinWire ColourDetails
    1Bare ShieldDVD Input Video Ground (-)
    2RedDVD Input Video Signal (+)
    3Bare ShieldReverse Camera Video Ground (-)
    4RedReverse Camera Video Signal (+)
    5 Not Used
    6 Not Used
    7GreenVideo Connector (RGBS) - Blue
    8BlackVideo Connector (RGBS) - Green
    9YellowVideo Connector (RGBS) - Low Reference
    10RedVideo Connector (RGBS) - Red
    11Bare ShieldVideo Connector (RGBS) - Ground
    12WhiteVideo Connector (RGBS) - Syncronisation
    13 Not Used
