Accessing the hidden HSV EDI Menu for the Holden VE II Commodore

  • Displaying the EDI Service Page
    1. The battery should be fully charged (or a booster battery connected)
    2. Turn key to Accessory On
    3. Ensure Infotainment System is switch on

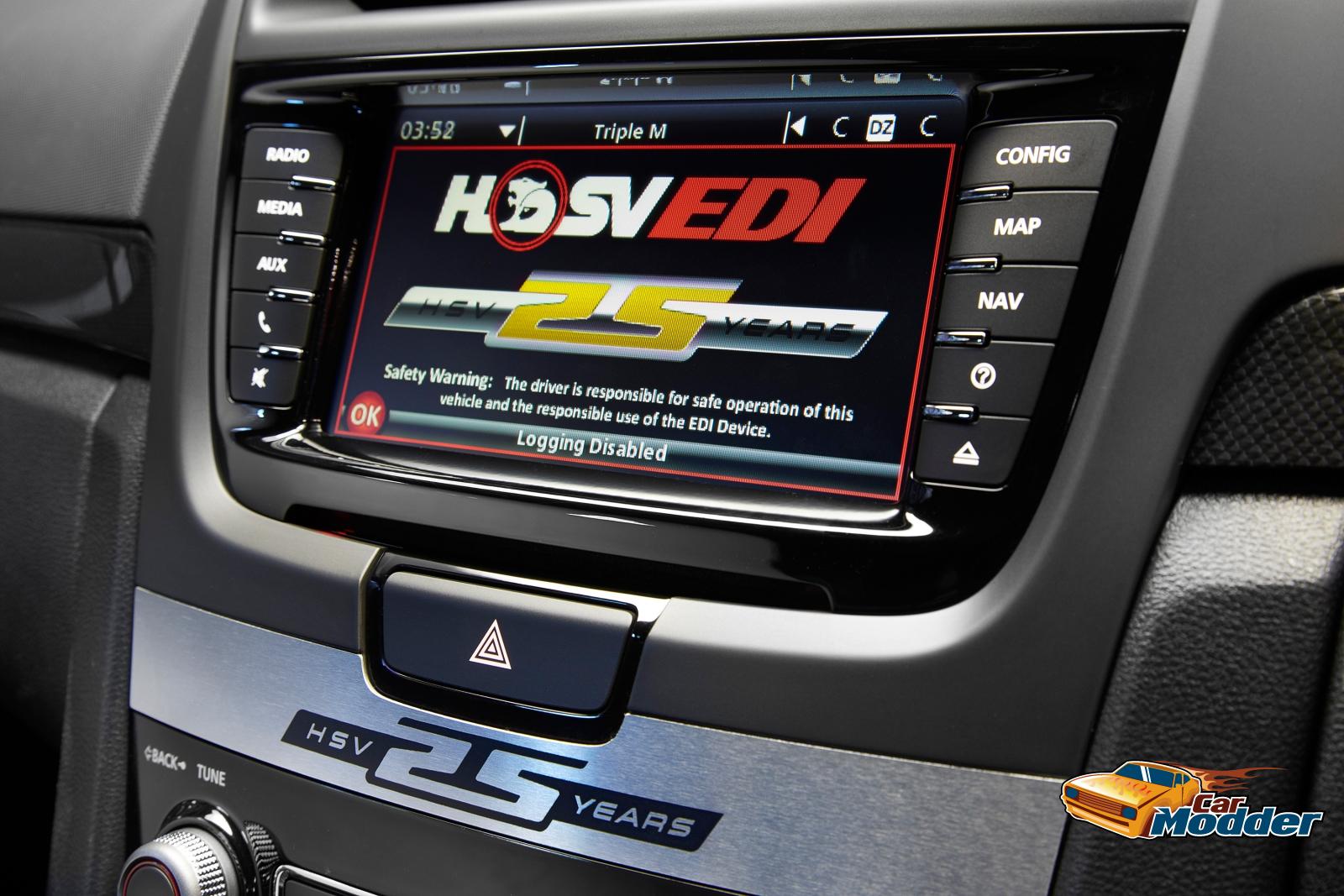

    4. Press EDI button on Steering Wheel to display EDI view
    (EDI/about page will be displayed for temporarily if ignition has previously been off for more than 2 minutes)
    5. Select the EDI Main Menu page by touching the HSV button in the bottom left corner of the screen if the Main Menu is not already being displayed.
    6. Touch the HSV button in the bottom left corner of the Main Menu to display the EDI/about page.
    7. Touch the bottom right corner of the EDI/about page for 5 seconds to display EDI/service page.
    Note: There is no visual button on the screen to touch, just touch the bottom right corner for 5 seconds.
    8. The EDI Service page contains the following menu items:

    Update Firmware
    This is used to update the software in the EDI using the Glovebox USB Connector.

    Update Factory
    This is used to update the Factory configuration settings in the EDI

    Information

    General Diagnostics

    SBZA Diagnostics (vehicles fitted with Side Blind Zone Alert only)
